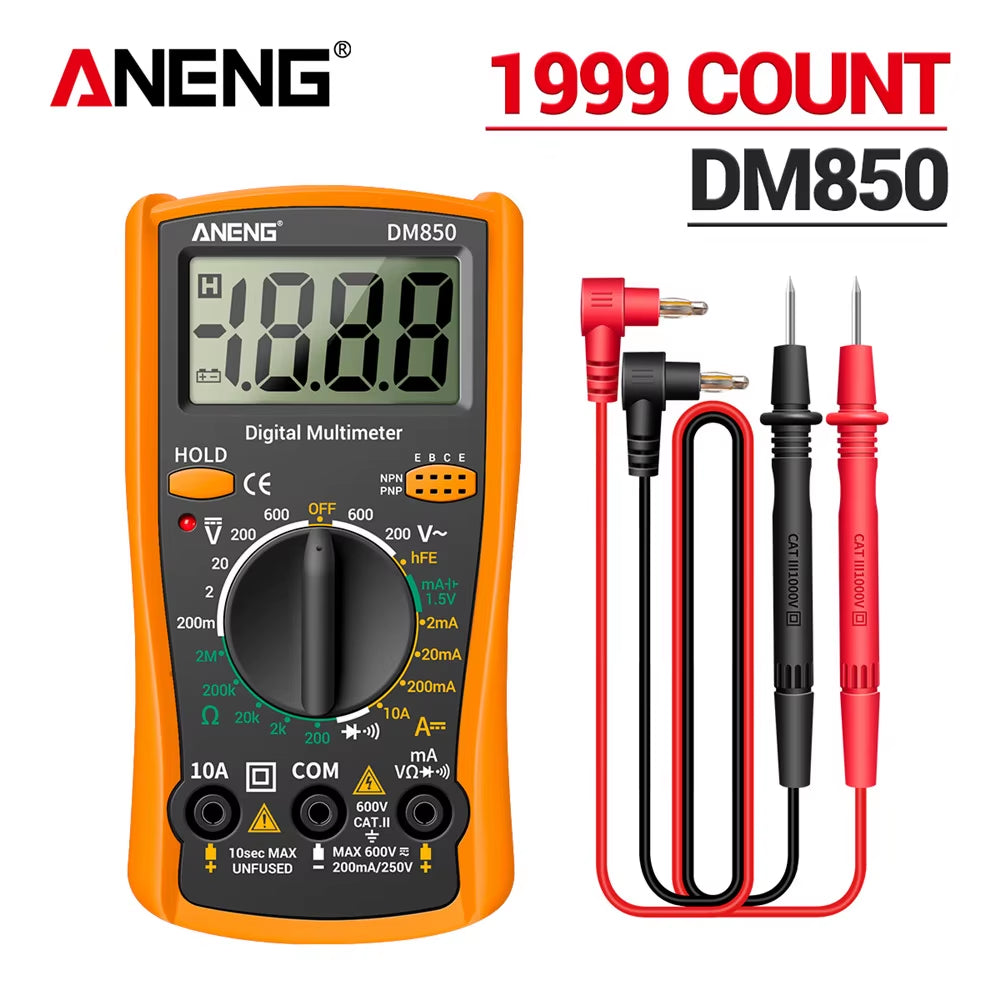

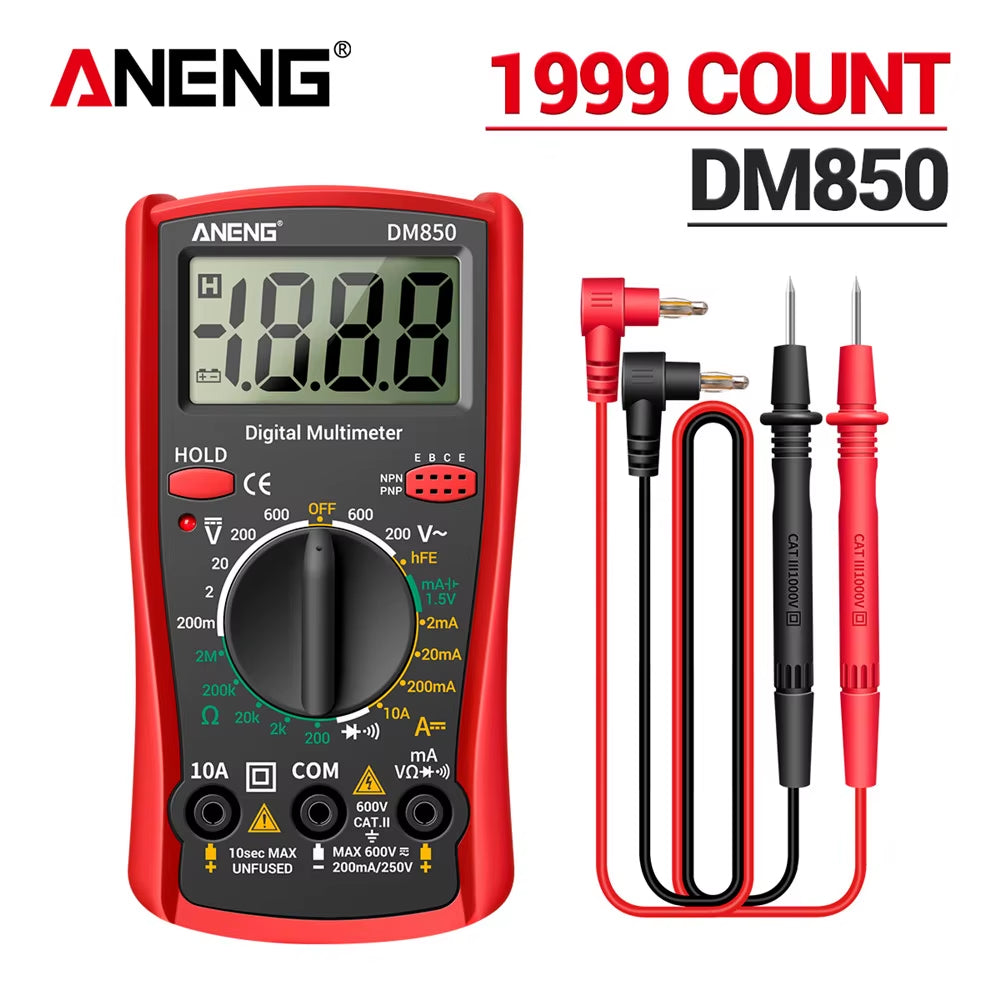

ANENG DM850
Eletric Digital Professional Multimeter
General: （Not include battery）

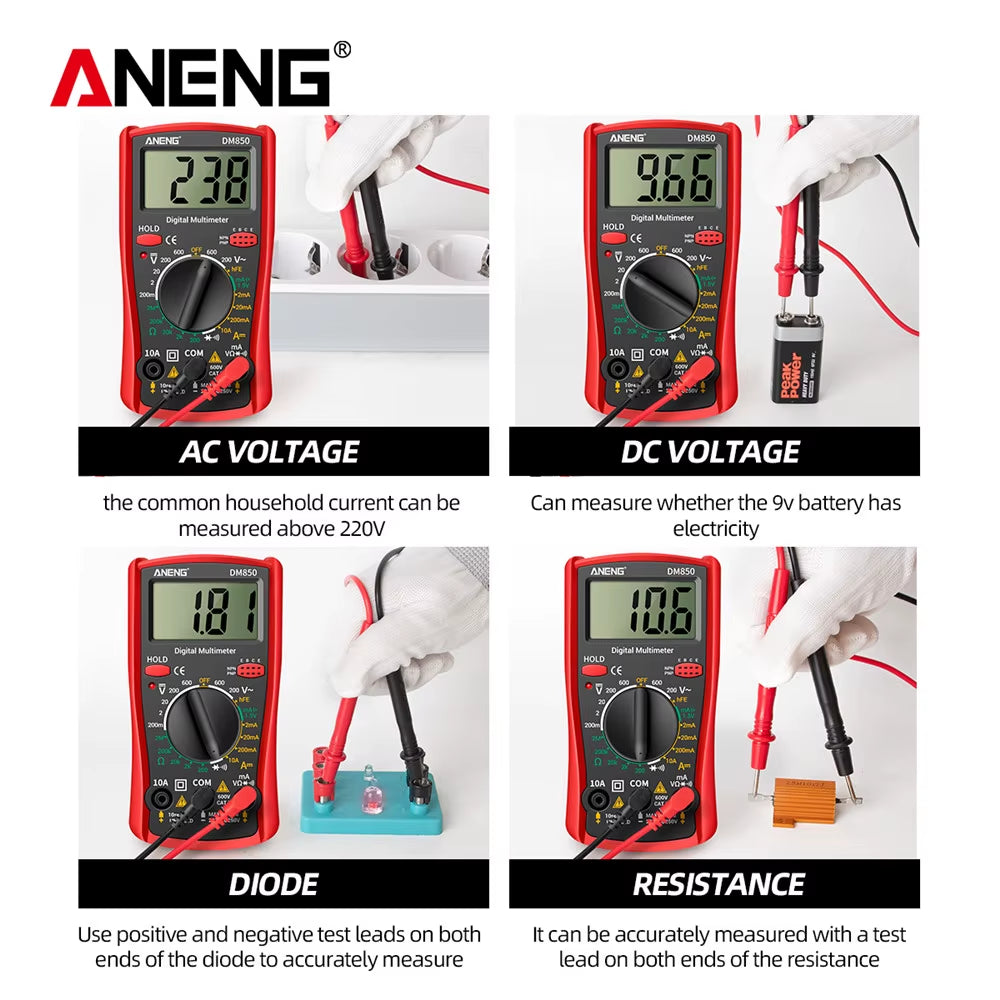

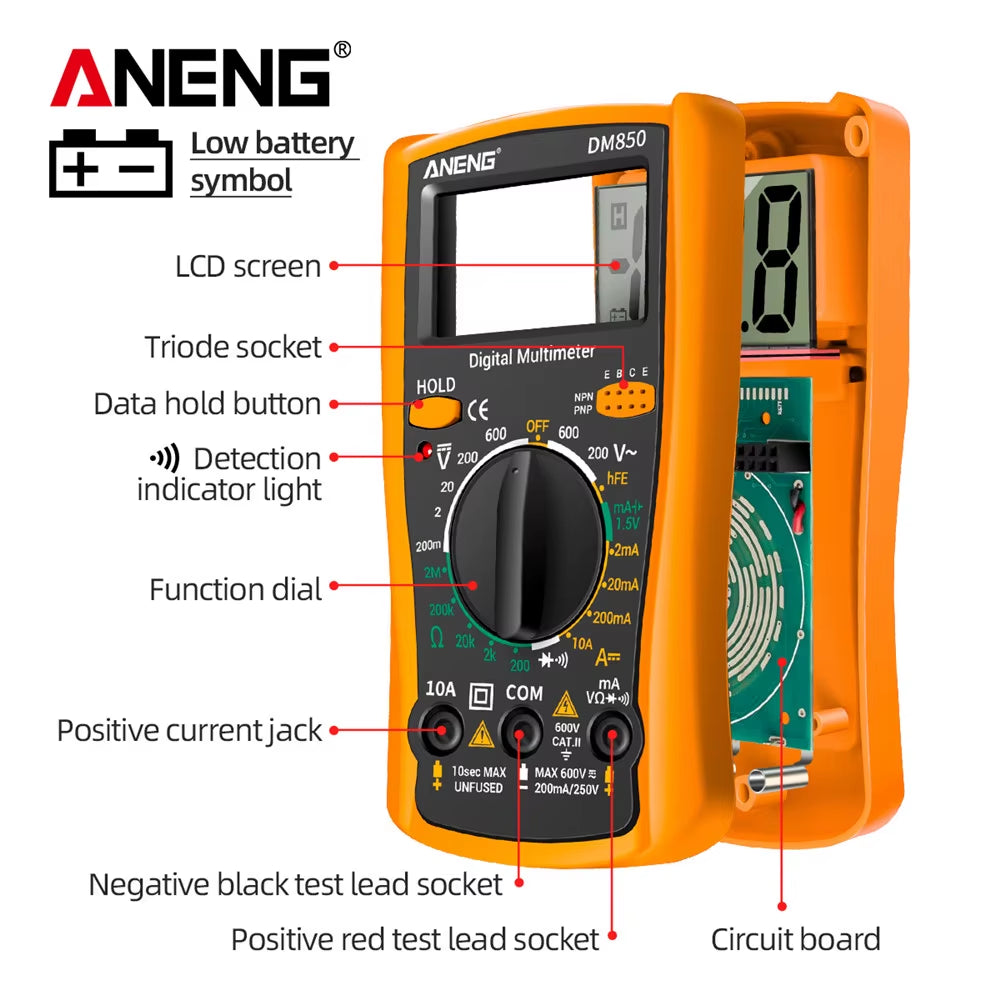

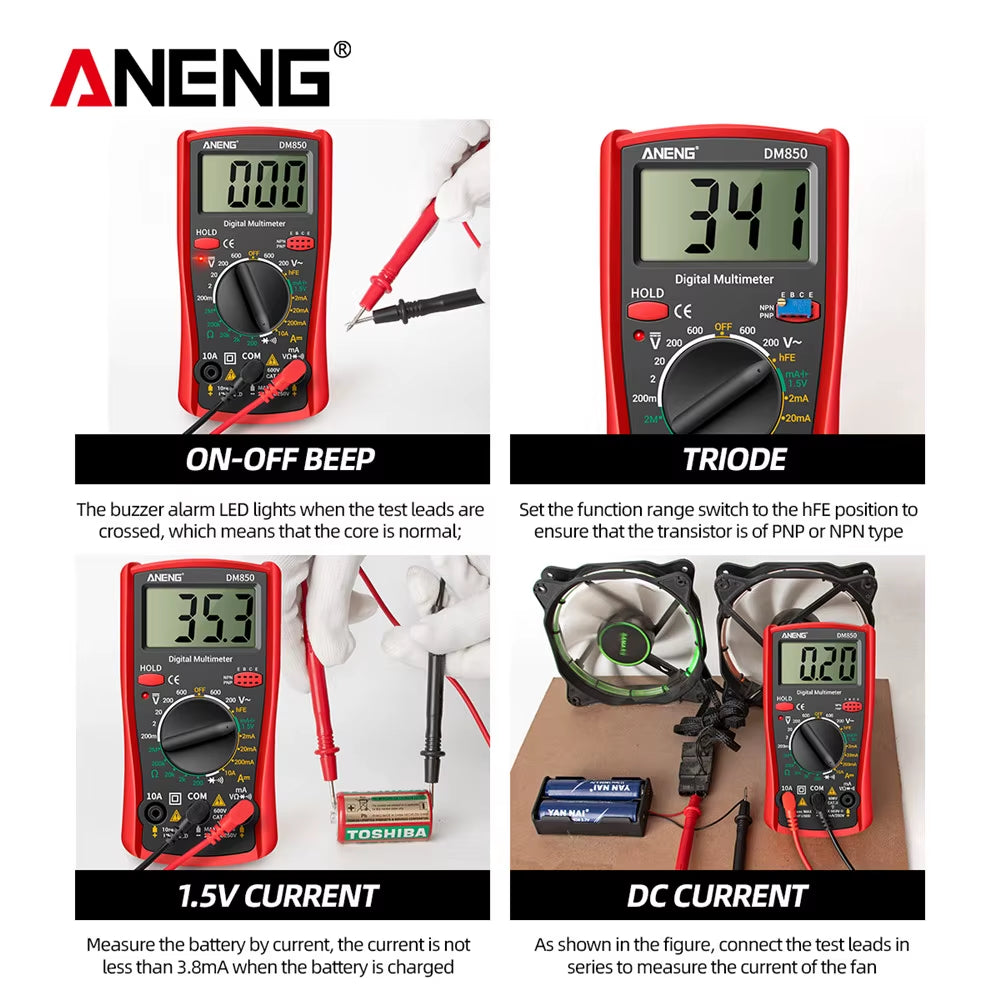

This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.

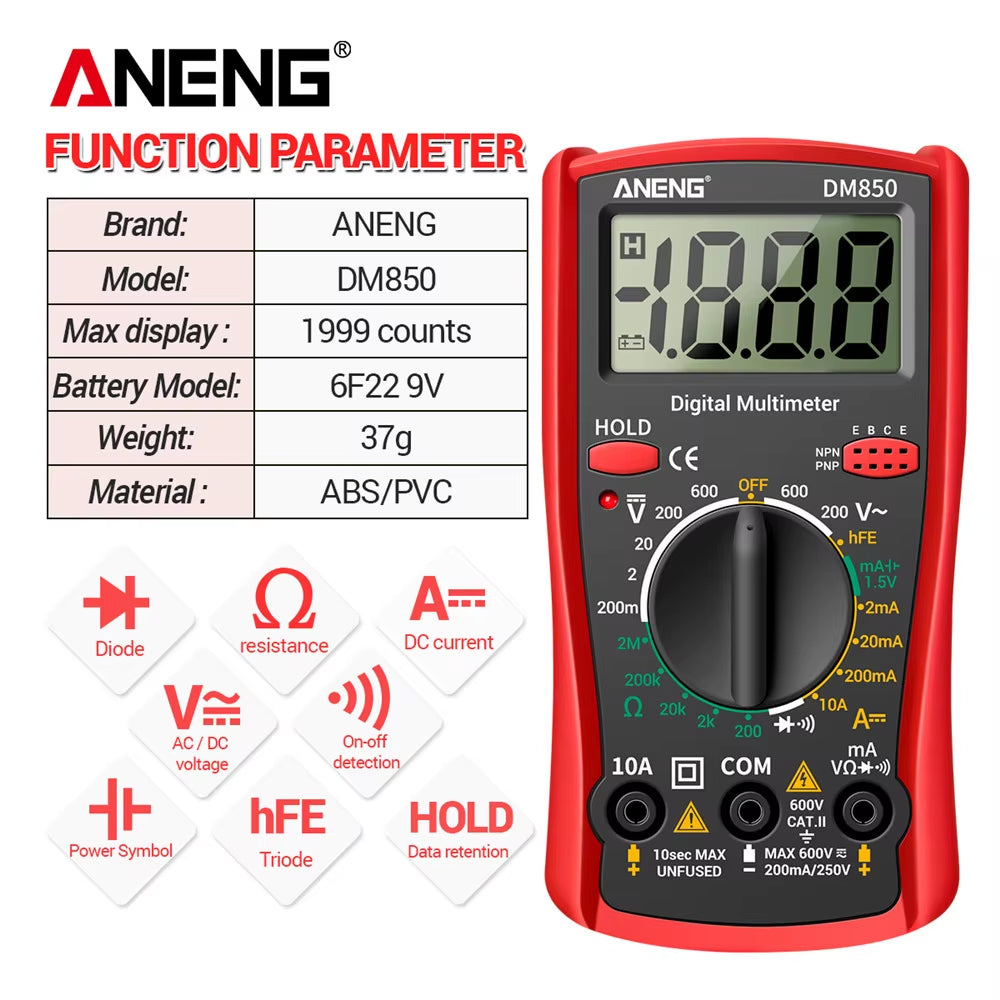

Specification:
Function |
Range |
Accuracy |
DC Voltage |
200mV |
+-(2% of rdg+3D) |
2000mV/20V/200V |
+-(2% of rdg+5D) |
|
600V |
+-(2.5% of rdg+5D) |
|
AC Voltage |
200V/600V |
+-(2% of rdg+10D) |
Frequency Range |
45Hz~450Hz |
|
Audible Continuity Test |
Yes |
|
DC Current |
200uA/2000uA/20mA |
+-(2% of rdg+2D) |
200mA |
+-(2.5% of rdg+2D) |
|
10A |
+-(2.5% of rdg+10D) |
|
Resistance |
200Ω |
+-(2.5% of rdg+10D) |
2000Ω/20kΩ/200kΩ/2000kΩ |
+-(2.5% of rdg+4D) |
|
Overload Protection |
15 second |

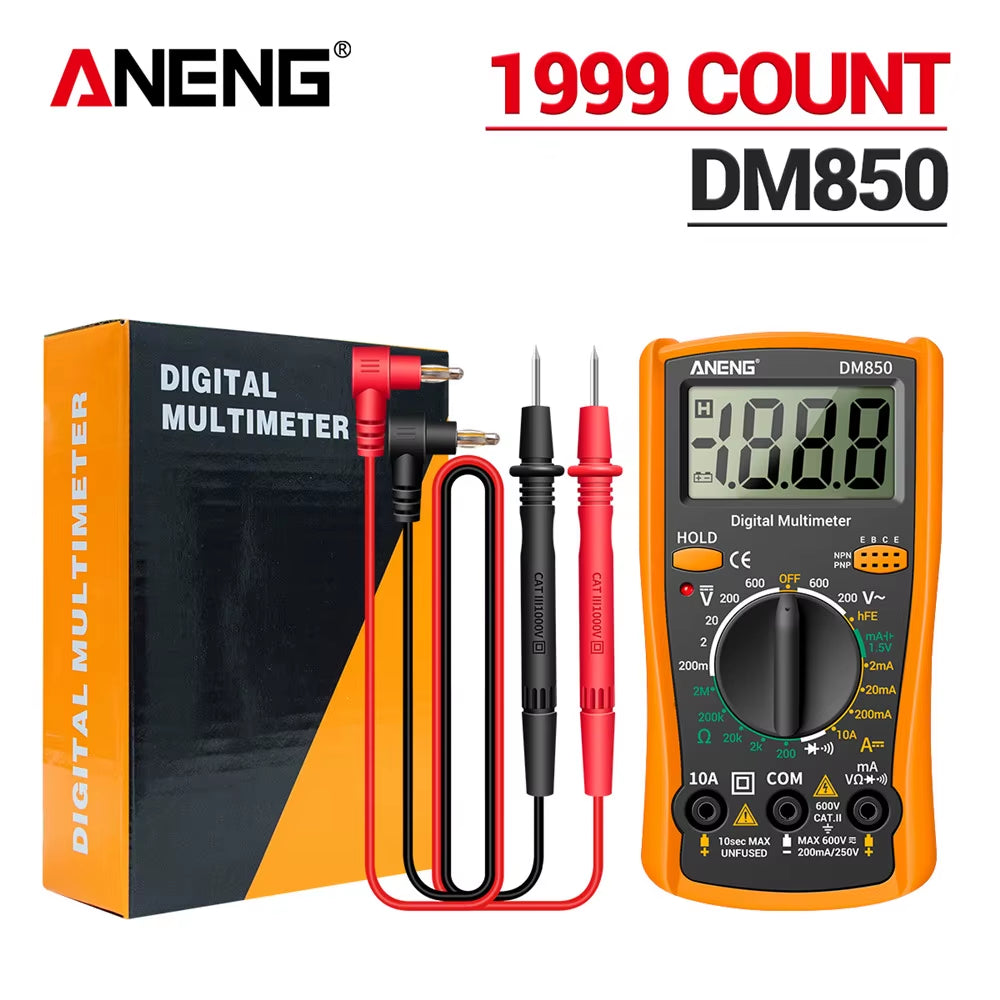

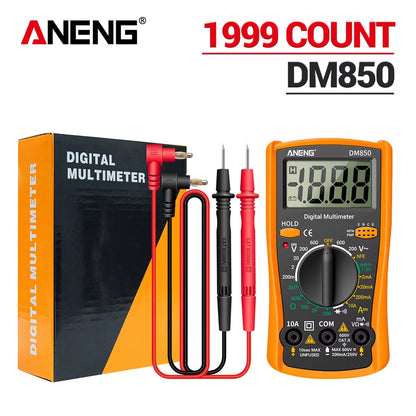

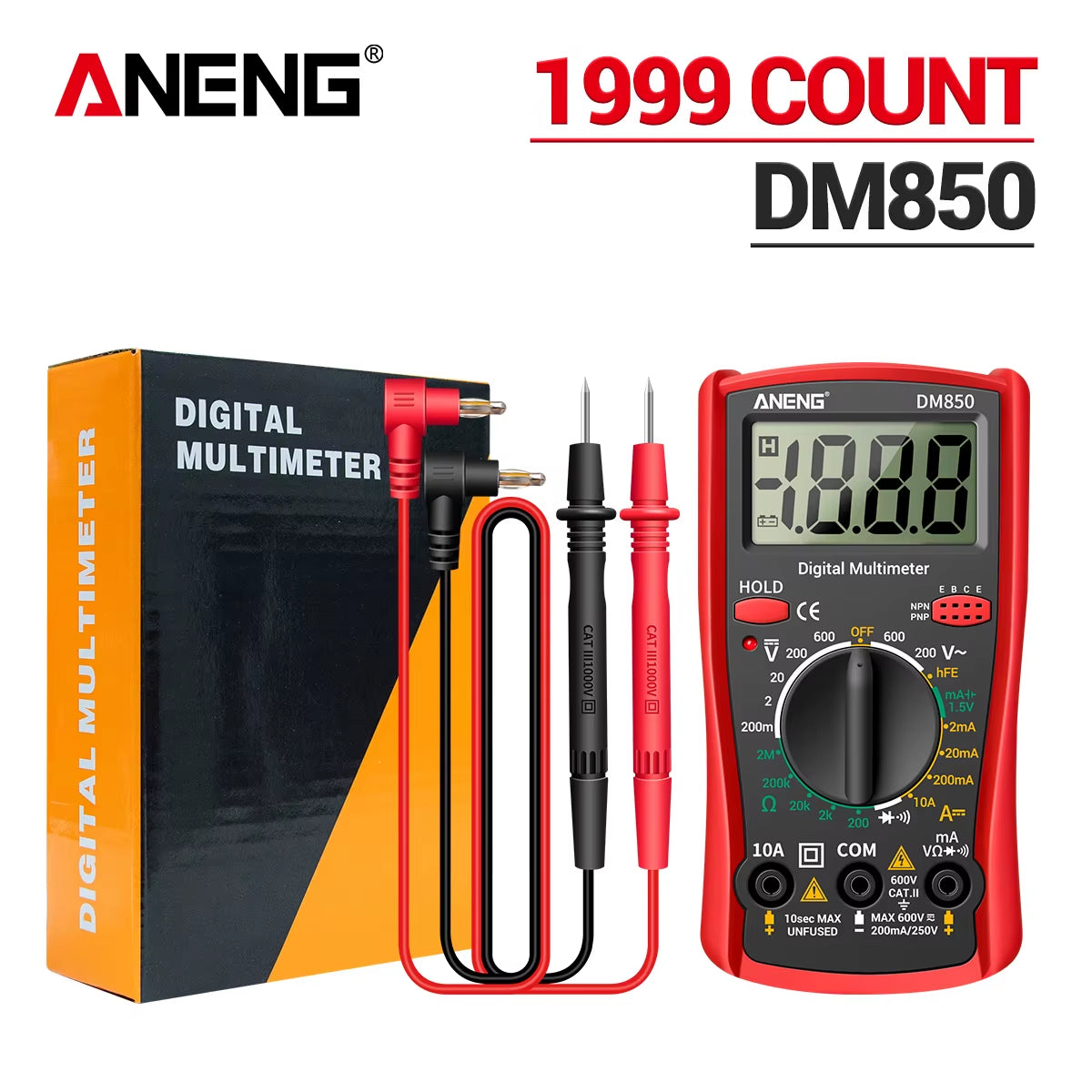

Package:（Without Battery）
1*Multimeter
1*test leads
1*manual
1*outer packing box(by option)
